KMW loaders have a low profile, modern appearance, and are engineered for today's tractors. Purchase a base loader now and add features and attachments as your operation requires. Let us introduce you to our Front-End Loader Features.
KMW Front-End Loader Features
In addition to specific features on individual models, all KMW front end loaders have these outstanding qualities you'll appreciate:
- Thick, high-strength materials used throughout all components
- Purchase base loader now and add features and attachments as your operation requires
- Replaceable steel wear bushings located at critical pivot points
- Large radius side plates for modern appearance and improved strength
- Heavy duty attachment linkages increase dump and rollback angles (Not Available on Model 1750)
-
Hydraulic oil supply hoses are routed inside boom arm
- Increases operator's visibility
- Protects the hydraulic components
- Enhances appearance
- Grease fittings conveniently located for easy lubrication
- Powder coat painted to match your tractor color
- High quality cylinders
- Reinforcement Doublers located in areas of high stress
- Optional Solenoid operated comfort drive
- Improves operator comfort
- Reduces strain on tractor/loader frame
- Increases productivity
- Extends unit's life
- Optional single lever hydraulic disconnect
- Optional loader valve with solenoid operated 3rd function
-
Optional 2 way hydraulic self-leveling (Not available on Model 1750)
- Fewer wear points
- Improved rollback angle
- Low profile
KMW Front-End Loader Attachments
featuring Euro-style quick attach

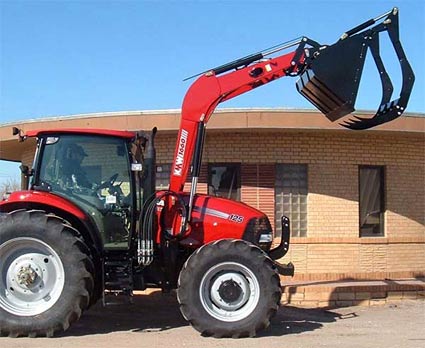

- Grapples - Choose 4 or 6 tine. Both have rugged 3/4" tines and dual cylinders.
- Heavy duty buckets (Other bucket options are available. Consult KMW)
- Available in 3 widths: 84", 96" & 102"
- 3" x 5" upper box cross tube
- 3/4" x 6" cutting edge
- 4 heavy duty wear bars
- Reinforced side plates
- Grapple Ready
- Optional Grill Guards (Note: Model 1750 grill guard integrated into loader)
- Pallet Forks
- Bale Spears
| Product Specifications | 1220 | 1440 | 1660 | 1750 | 1760 | 1860 |
|---|---|---|---|---|---|---|
| Tractor HP | 45-80 | 60-110 | 80-130 | 90-180 | 110-190 | 140-255 |
| Maximum Lift Height to Pivot Point |
10'-4" | 11'-8" | 12'-10" | 13'-8" | 13'-8" | 15' |
| Clearance with Bucket Fully Dumped |
8'-2" | 9'-2" | 10'-1" | 11'-5" | 11'-5" | 12'-4" |
| Reach at Maximum Lift Height | 2'-2" | 3'-8" | 2'-8" | 3'-6" | 4'-2" | 2' |
| Dump Angle | 40° | 42° | 42° | 37° | 40° | 40° |
| Reach with Bucket on Ground | 6'-1" | 7' | 7'-5" | 7'-10" | 8'-5" | 8'-7" |
| Rollback Angle | 17° | 30° | 32° | 25° | 32° | 32° |
| Dig Depth | 5.5" | 4.75" | 4" | 4" | 3" | 3" |
| Lift Capacity to Maximum Height at Pivot Point | 3609# | 4400# | 4750# | 4500# | 5600# | 6400# |
We design loaders to fit AGCO, Buhler, Case International, John Deere, McCormick, and New Holland tractors. Click here to check for your make and model.
Specifications based on ASAE Standards 5301.3 and furnished for general information as they can vary with different tractor models.
